High-Performance Fan Filter Unit (FFU) – Dual Filtration with HEPA H14
Our FFU features primary filter + H14 HEPA dual-stage filtration, delivering uniform laminar airflow (0.45 m/s ±20%) to achieve high-grade cleanliness.
Modular design allows for easy installation, replacement, and relocation – ideal for cleanrooms, laboratories, semiconductor fabs, and FAB facilities.
Construction Options: SUS304 stainless steel / Galvalume sheet (optional)
Core Features:
✅Outer casing is made of galvalume sheet or stainless steel.
✅It applies powerful fan, makes the whole equipment keep long-term operation under high static pressure and maintain a low noise at the same time.
✅Low noise, light weight, easy to install
✅Intelligent control system: DC/AC
✅ Uniform air speed, stable operation
✅Compact and firm Structure
✅Three-speed control or continuously variable.
- Material: 304 Stainless Steel
- Contact Person: Email:[email protected] whatsapp Cell: +86 180 3849 3642 Tel:+86(769)8571 9116

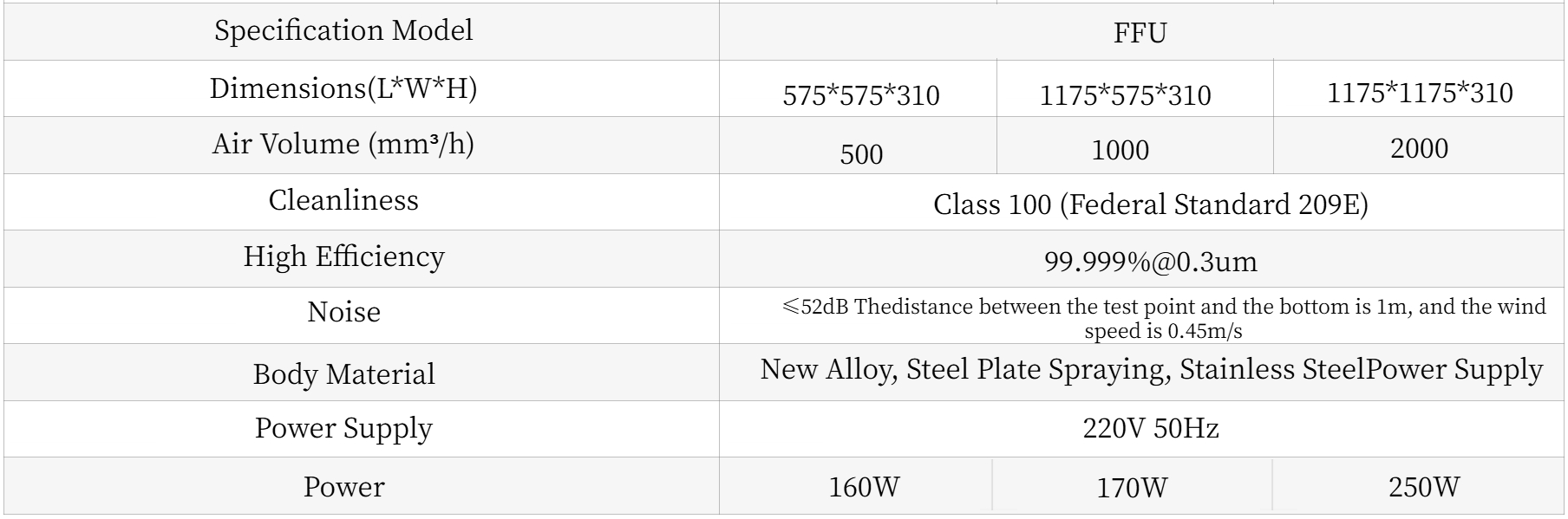

Specifications
