Cleanroom FFU Ceiling Grid System
Cleanroom FFU Ceiling Grid System

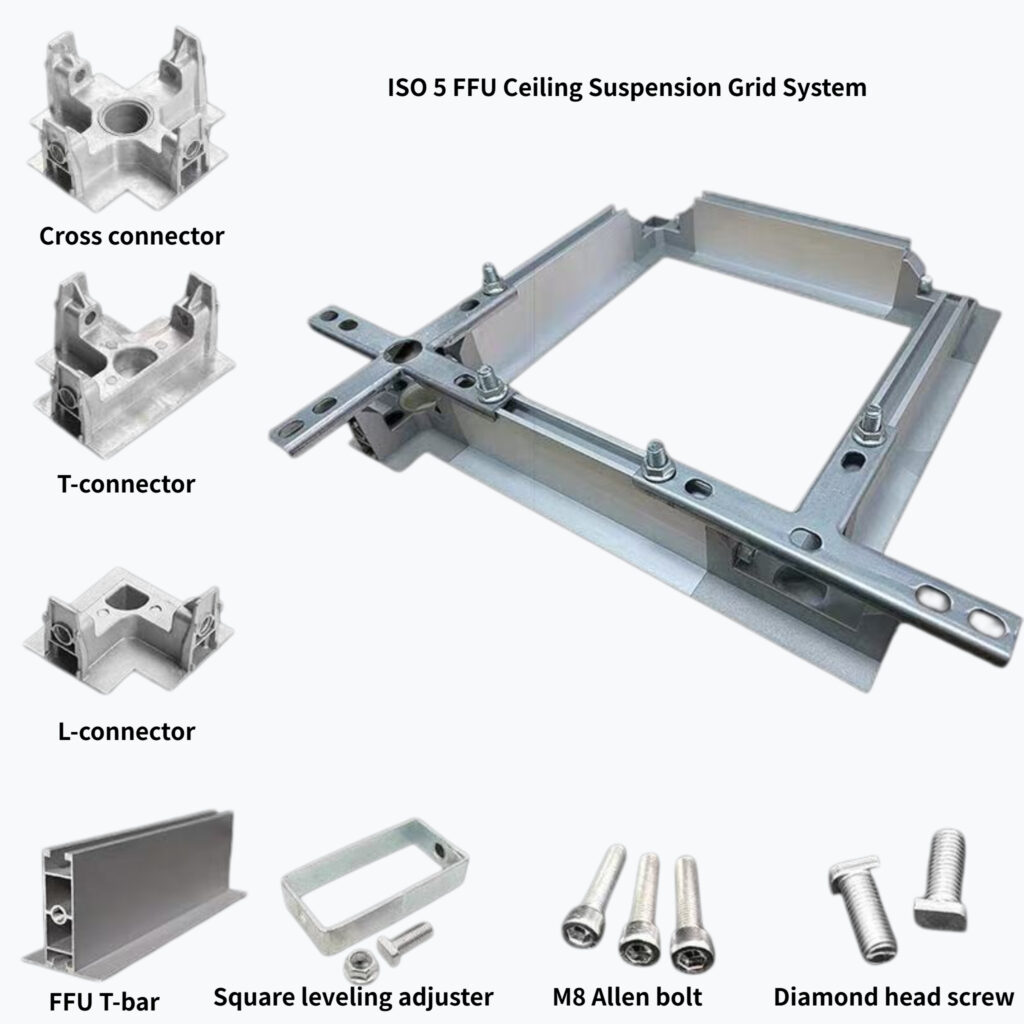

Our FFU Ceiling Grid System is a professional modular ceiling framework designed specifically for cleanroom FFU (Fan Filter Unit) installation. Made of high-grade Aluminum Alloy 6063-T5 with zinc alloy connectors, the system delivers high strength, lightweight, corrosion resistance, and excellent airtight performance.
Standard modular sizes 1200×600mm / 1200×1200mm match most FFU dimensions. Precision-engineered joints ensure tool-free assembly, minimal vibration, and stable airflow distribution, helping maintain ISO Class 5–8 cleanliness. The grid integrates FFUs, lighting, fire sprinklers, and sensors into one system, widely used in pharmaceutical, semiconductor, electronics, and biotech cleanrooms.
Standard modular sizes 1200×600mm / 1200×1200mm match most FFU dimensions. Precision-engineered joints ensure tool-free assembly, minimal vibration, and stable airflow distribution, helping maintain ISO Class 5–8 cleanliness. The grid integrates FFUs, lighting, fire sprinklers, and sensors into one system, widely used in pharmaceutical, semiconductor, electronics, and biotech cleanrooms.
✅ Key Features

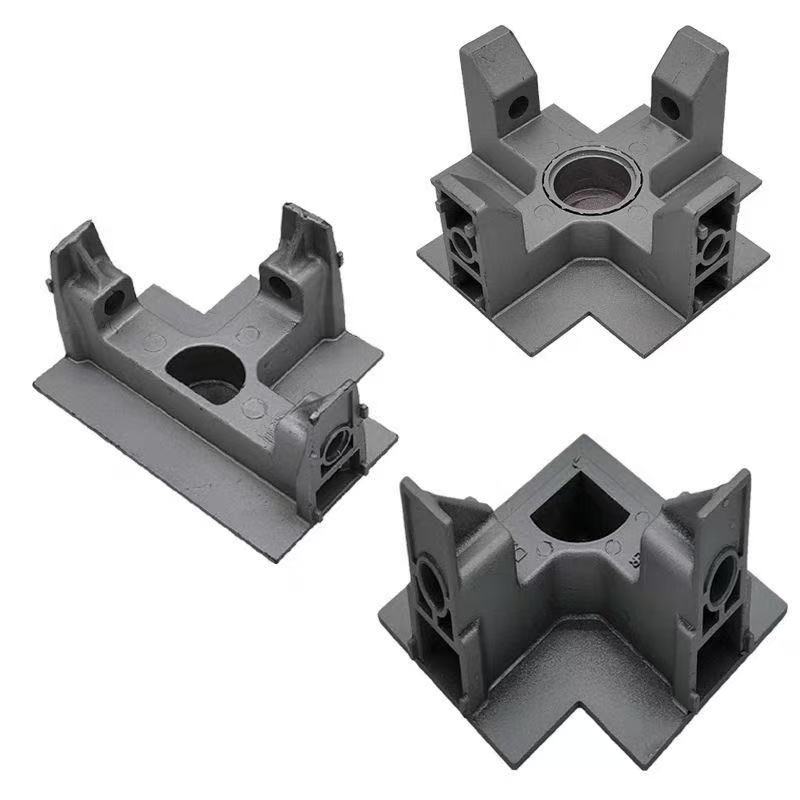

Modular aluminum 6063-T5 construction – light yet strong, corrosion-resistant
Airtight & vibration-free design – reduces air leakage, ensures consistent laminar flow
Standard sizes – fits most FFU units
Tool-free quick installation – saves time & labor cost
Integrated T-slot & accessory channels – for lights, sprinklers, sensors
High load capacity – supports FFUs up to 250 kg/m²
Smooth non-dust surface – easy to clean & disinfect
Flexible & expandable – easy layout change & future expansion
- Material: high-grade 6063 aluminum alloy
- Contact Person: Email:[email protected] whatsapp Cell: +86 180 3849 3642 Tel:+86(769)8571 9116

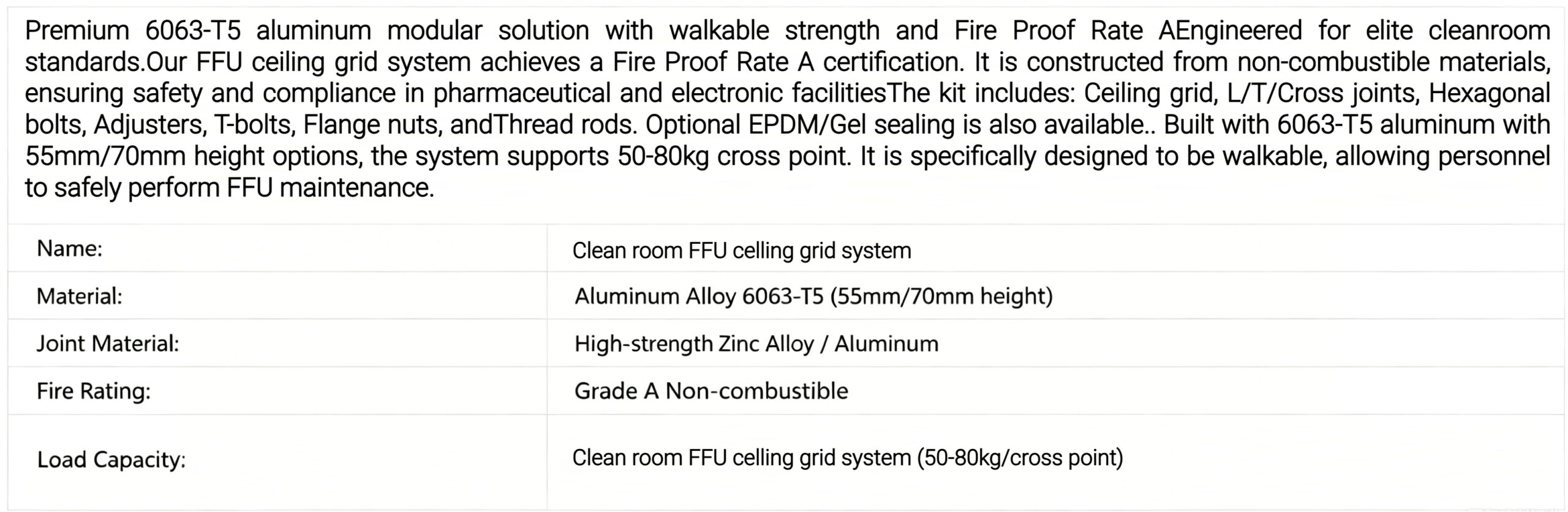

Specifications
