Cleanroom Air Outlet

Precision Air Distribution for Controlled Environments

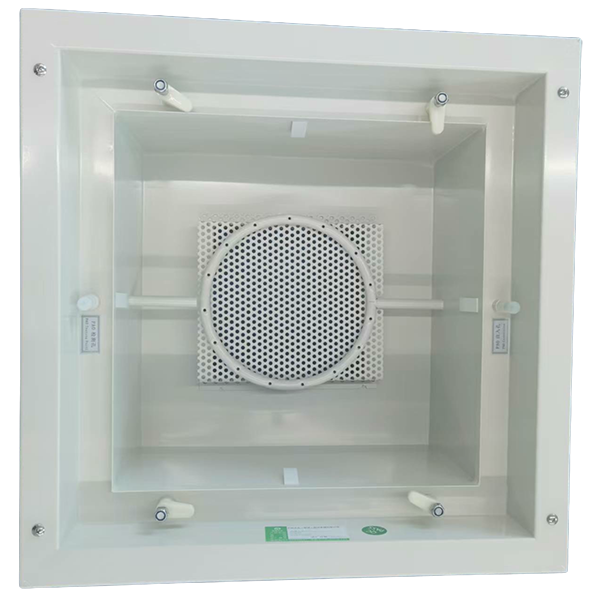

Our high-performance Air Supply Diffuser delivers uniform laminar airflow for critical environments requiring contamination control. Engineered to meet strict international cleanroom standards, this unit ensures optimal air distribution in pharmaceutical, healthcare, and electronics facilities.

Technical Specifications:

• Material: 304/316L Stainless Steel or Anodized Aluminum

• Airflow Pattern: Unidirectional laminar flow (0.45m/s ±10%)

• Face Velocity: 0.3-0.5 m/s (adjustable)

• Pressure Drop: ≤30 Pa @ rated airflow

• Cleanroom Class: Complies with ISO 14644 Class 5-8

• Surface Finish: Electropolished (Ra ≤0.5μm for pharma grade)

Key Features:
Uniform Air Distribution: Precision-engineered perforated plate design
HEPA Integration: Compatible with HEPA/ULPA filter housings
GMP Compliance: Smooth, cleanable surfaces with radiused corners
Modular Design: Multiple size options (300x300mm to 1200x600mm)
Low Turbulence: Maintains ISO-classified airflow patterns

Certifications & Compliance:

• ISO 14644-1 Cleanroom Standards

• GMP Annex 1 Requirements

• CE Marking (2014/34/EU)

• FDA CFR 21 Compliant Materials
